Skypark Series Controller

Surge and Pressure Controller

PULSCO’s Skypark 700 Series hydropneumatic controllers are pre-engineered solutions for either surge or pressure control systems.

The Skypark 700 Series has been designed for easy installation, maintenance, and operation. The control logic was developed based on PULSCO’s expertise and experience in fulfilling customer needs. The controller is fully stand alone but can be easily connected to any SCADA or PLC network regardless of communication protocol. The Skypark 700 Series is ideal for new installations or refurbishments.

Inquire

Call us 949.261.1717

For any question or concern

Controller - Pneumatic Assembly on Blue Background

Features

Off the shelf models for quick turnaround

Multi-tank control

Analog input surge suppression

Standard 120v (additional voltages available)

Remote Communication

Standard ethernet TCP/IP (additional protocol support available)

Remote session support

Remote monitoring services available

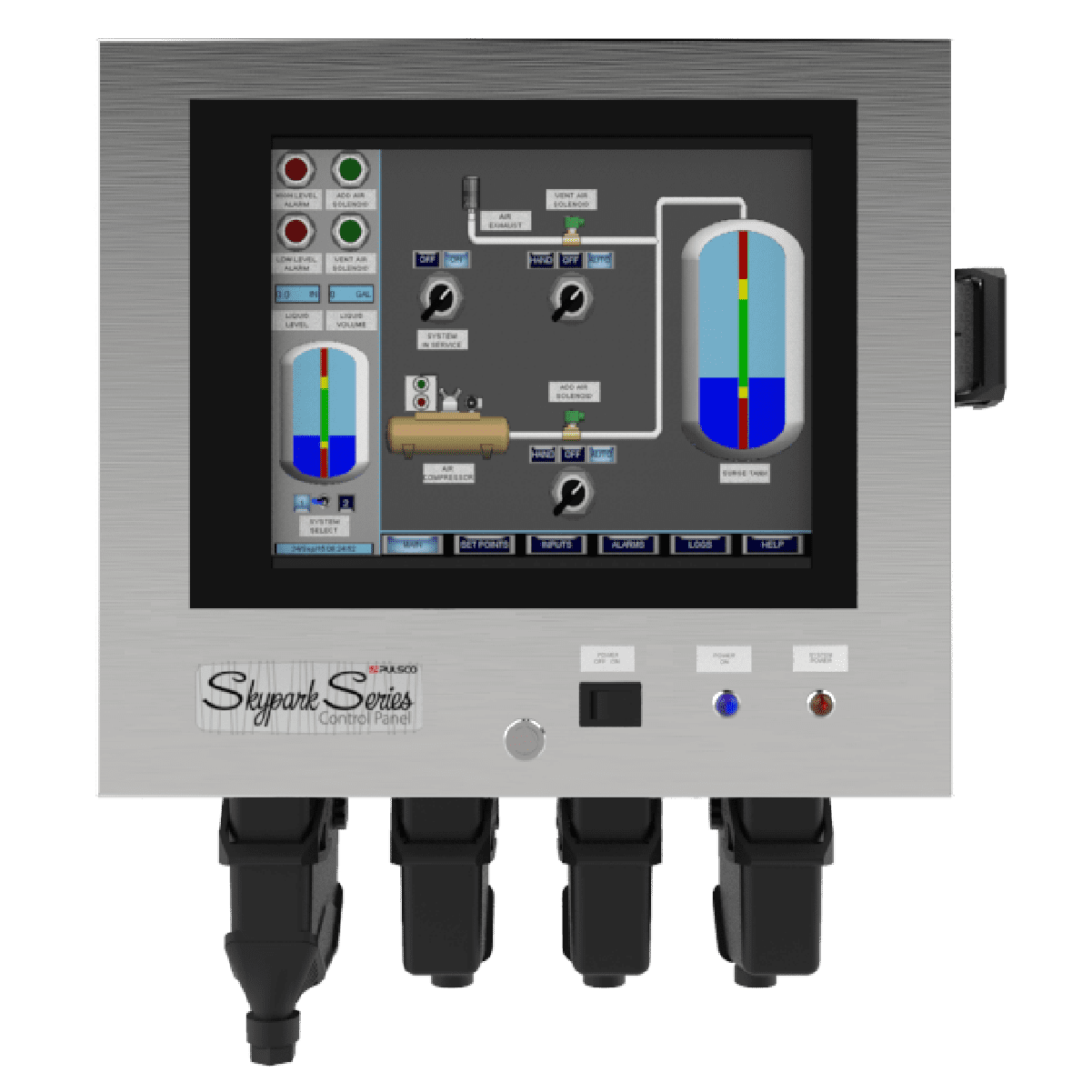

Intuitive Interface

12″ HMI color touch screen

Change set points using keypad entry display

View and download event history

Easy Installation

Wall mounted NEMA 4X enclosure.

Indoors or outdoors

Rated for operation from -20 to 120 °F (-28 to 48 °C)

No drilling needed for conduit connections

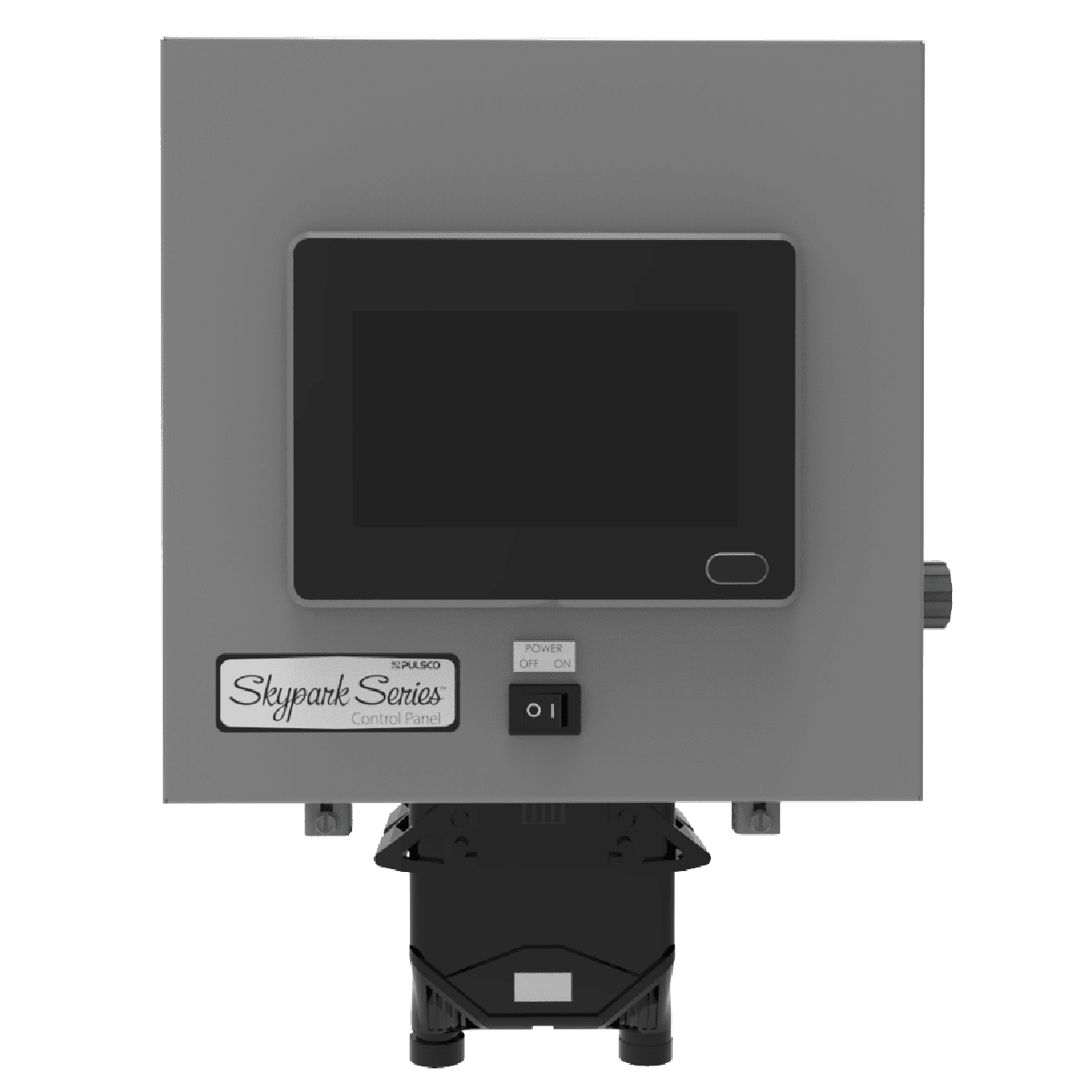

Bladder System

Small and affordable panel for two-analog and four-digital outputs.

Wall-mount NEMA 4 with 7″ HMI touch screen interface.

Ethernet TCP/IP communication standard with downloadable data log.

Surge Controller

The controls maintain the volume of air required to mitigate pressure spikes in pipelines caused by sudden pump startup, shutdown, or valve closure.

Pressure Controller

The controls maintain water system pressure between a specified range to reduce system pumps cycling.

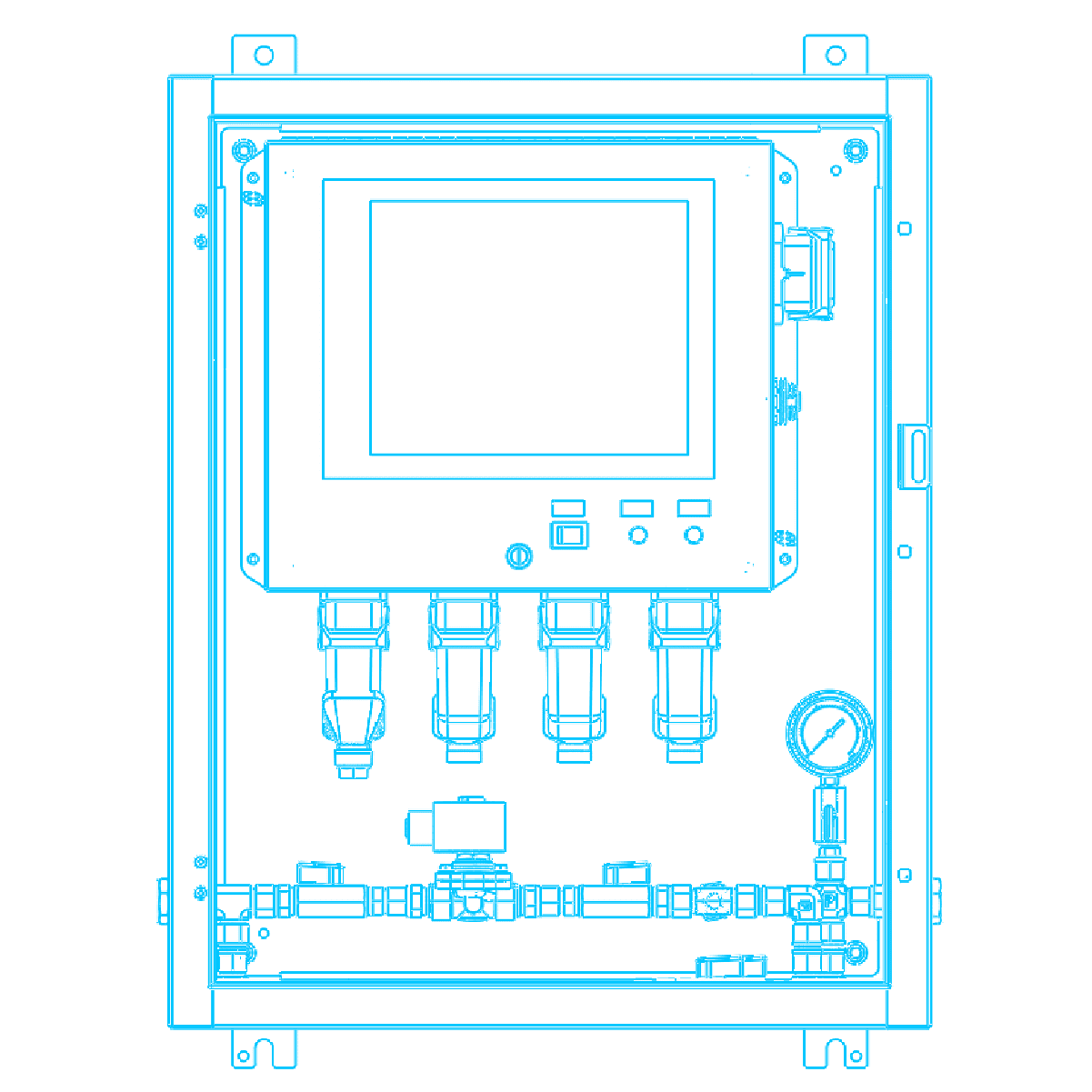

Pneumatic Assembly

Either the SCP-740 or the SCP-750 are integrated with complete level control assembly for ease of job site installation.

The add and vent air solenoids, bypass and isolation ball valves, pressure gauge, and all piping and fittings needed for a full and complete level control assembly are pre-piped and wired inside a NEMA 4 outer enclosure.
